Azure

The Azure compute provider lets Transformer Lab launch ephemeral Azure VMs for training jobs directly from your Azure subscription. Each job gets its own VM, which self-terminates when the job finishes or crashes.

Beta

The Azure provider is currently in beta.

How It Works

When you run a training task on an Azure provider, Transformer Lab:

1. Ensures a resource group, VNet, subnet, and network security group exist for your team.
2. Creates a NIC and public IP, then launches a new VM with Ubuntu 22.04.
3. Assigns a system-managed identity to the VM so it can delete itself via the Azure REST API.
4. Streams logs back over SSH while the job runs.
5. The VM deletes itself (and its NIC, public IP, and OS disk) when the job completes or fails.

All created resources are tagged with your team ID and follow the transformerlab-* naming pattern.

Prerequisites

• An Azure subscription.
• Permission to create a Service Principal (App Registration) and assign roles in your subscription.

Transformer Lab authenticates to Azure using a Service Principal with a client secret (sometimes called an App Registration with a secret). You will create this below.

Step 1: Create a Service Principal

1. Open the Azure portal and navigate to Microsoft Entra ID → App registrations.
2. Click New registration.
3. Give it a name such as transformerlab-compute and click Register.
4. Note the Application (client) ID and Directory (tenant) ID displayed on the overview page — you will need these later.

Create a client secret

1. Inside the app registration, go to Certificates & secrets → Client secrets.
2. Click New client secret, add a description, choose an expiry, and click Add.
3. Copy the Value immediately — it is shown only once.

Step 2: Assign Azure Roles

Transformer Lab needs two roles on your subscription (or on a pre-created resource group — see Scope-Limiting Permissions for a tighter setup).

Role	Why It Is Needed
Contributor	Create and manage VMs, networking, and the resource group
User Access Administrator	Grant the VM's managed identity the right to delete itself

Assign both roles

1. In the Azure portal, navigate to Subscriptions and open your subscription.
2. Go to Access control (IAM) → Add → Add role assignment.
3. Search for Contributor, select it, and click Next.
4. On the Members tab, choose User, group, or service principal, then click Select members and find your transformerlab-compute app registration.
5. Click Review + assign.
6. Repeat the same steps for the User Access Administrator role.

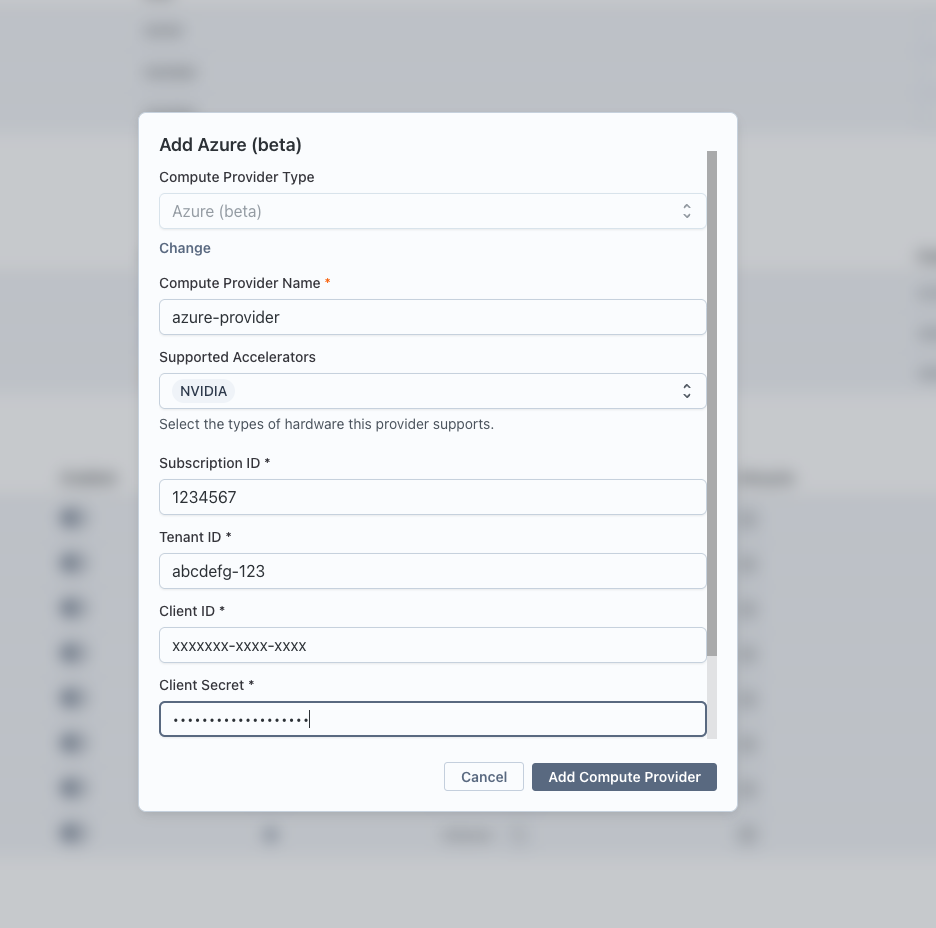

Step 3: Add the Provider in Transformer Lab

1. In Transformer Lab, open the Team page and go to Compute Providers.
2. Click Add Compute Provider and choose Azure (beta).
3. Fill in the fields:

Field	Where to Find It
Compute Provider Name	A friendly display name (e.g. My Azure East US)
Subscription ID	Azure portal → Subscriptions → your subscription
Tenant ID	App registration overview → Directory (tenant) ID
Client ID	App registration overview → Application (client) ID
Client Secret	The secret value you copied in Step 1
Location	Azure region for VMs (e.g. eastus, westeurope). Defaults to eastus.

4. Click Add Compute Provider.

Transformer Lab will validate the credentials by making a lightweight subscription check. If validation fails, confirm the roles are assigned to the correct app registration.

Step 4: Select the Provider for a Job

When creating a training task, expand the Compute section and select your new Azure provider. Choose the GPU type and count, then submit the job.

Resources Created Automatically

Transformer Lab creates these once per team and reuses them on subsequent launches. The resource group is created automatically and named transformerlab-<team_id> by default.

Resource	Name Pattern	Purpose
Resource group	transformerlab-<team_id>	Container for all Transformer Lab resources
Virtual network	transformerlab-vnet-<team_id>	Private network for VMs
Subnet	transformerlab-subnet-<team_id>	Subnet inside the VNet
Network security group	transformerlab-nsg-<team_id>	Allows SSH (port 22) inbound
Public IP (per VM)	transformerlab-pip-<cluster_name>	Enables SSH access and self-termination
NIC (per VM)	transformerlab-nic-<cluster_name>	VM network interface

Public IPs and NICs are deleted when a job finishes.

Supported GPU Types

GPU	Available Counts	Azure VM Series
T4	1, 4, 16	NCas_T4_v3
A10	1, 2	NVads_A10_v5
A100	1, 2, 4, 8	NCads_A100_v4 / NDasr_v4
H100	1, 2, 8	NCads_H100_v5 / NDisr_H100_v5
V100	1, 2, 4	NCs_v3

CPU-only instances are also supported; Transformer Lab selects the smallest VM that satisfies the vCPU and memory requirements in your task.

Required Azure Permissions Reference

The following table lists every Azure operation Transformer Lab performs, grouped by resource type.

Subscription / Identity

Operation	Why
Microsoft.Resources/subscriptions/read	Provider health check on startup

Resource Groups

Operation	Why
Microsoft.Resources/subscriptions/resourcegroups/write	Create the team resource group if it does not exist

Networking

Operation	Why
Microsoft.Network/networkSecurityGroups/read	Check whether the team NSG exists
Microsoft.Network/networkSecurityGroups/write	Create the team NSG with an SSH allow rule
Microsoft.Network/virtualNetworks/write	Create the team VNet and subnet
Microsoft.Network/virtualNetworks/subnets/read	Read subnet ID for VM NIC creation
Microsoft.Network/virtualNetworks/subnets/join/action	Attach NIC to the subnet on VM creation
Microsoft.Network/publicIPAddresses/write	Create a public IP for each VM
Microsoft.Network/publicIPAddresses/read	Read public IP after creation for SSH access
Microsoft.Network/publicIPAddresses/delete	Delete per-job public IP after the VM terminates
Microsoft.Network/networkInterfaces/write	Create a NIC for each VM
Microsoft.Network/networkInterfaces/delete	Delete per-job NIC after the VM terminates

Compute

Operation	Why
Microsoft.Compute/virtualMachines/write	Launch a VM for each job
Microsoft.Compute/virtualMachines/read	Poll VM status and get instance view
Microsoft.Compute/virtualMachines/delete	Stop/remove a VM on demand

Authorization (VM self-termination)

Operation	Why
Microsoft.Authorization/roleAssignments/write	Assign Virtual Machine Contributor to the VM's managed identity so it can delete itself

The Contributor role covers all networking and compute operations. User Access Administrator covers the authorization operation.

Scope-Limiting Permissions

For tighter security you can restrict the Service Principal to a specific resource group instead of the whole subscription. The trade-off is that you must create the resource group yourself before adding the provider.

1. Determine your team ID in Transformer Lab (visible on the Team page).
2. Create a resource group named transformerlab-<your-team-id> in your chosen location.
3. Assign Contributor and User Access Administrator to the transformerlab-compute Service Principal on that resource group (not on the subscription).
4. When adding the provider in Transformer Lab, ensure the Location matches the region of the pre-created resource group.

With this setup, the Service Principal cannot create or modify resources outside that resource group.

Troubleshooting

Credential validation fails immediately after adding the provider

• Confirm both roles are assigned to the Application (client) ID, not to a user account.
• Make sure the client secret has not expired.
• Check that the Subscription ID, Tenant ID, and Client ID all match the App Registration.

VM launch fails with an image error

• Some GPU VM sizes require an image that is not available in every region. Try a different Location (region) or a different GPU type.
• Check Azure Compute quotas for the target VM family in the Azure portal under Subscriptions → Usage + quotas.

VM launches but produces no logs

• The VM may still be bootstrapping. GPU VMs can take several minutes to finish initializing.
• Verify that port 22 is not blocked by a custom NSG rule or Azure Policy you have applied.

Role assignment fails with "RoleAssignmentExists"

This error is harmless — it means the VM's managed identity already has the required role. Transformer Lab handles this gracefully and continues with the job.
